Experiment Plan with Silicon Data#

This tutorial guides through planning an experiment using the TOPAZ instrument in NeuXtalViz with silicon data.

Step 1: Initialize the Experiment Planner#

  • Open NeuXtalViz and navigate to the Experiment Planner tab.

  • Select “TOPAZ” from the instrument dropdown menu.

  • Load the UB matrix and set initial parameters.

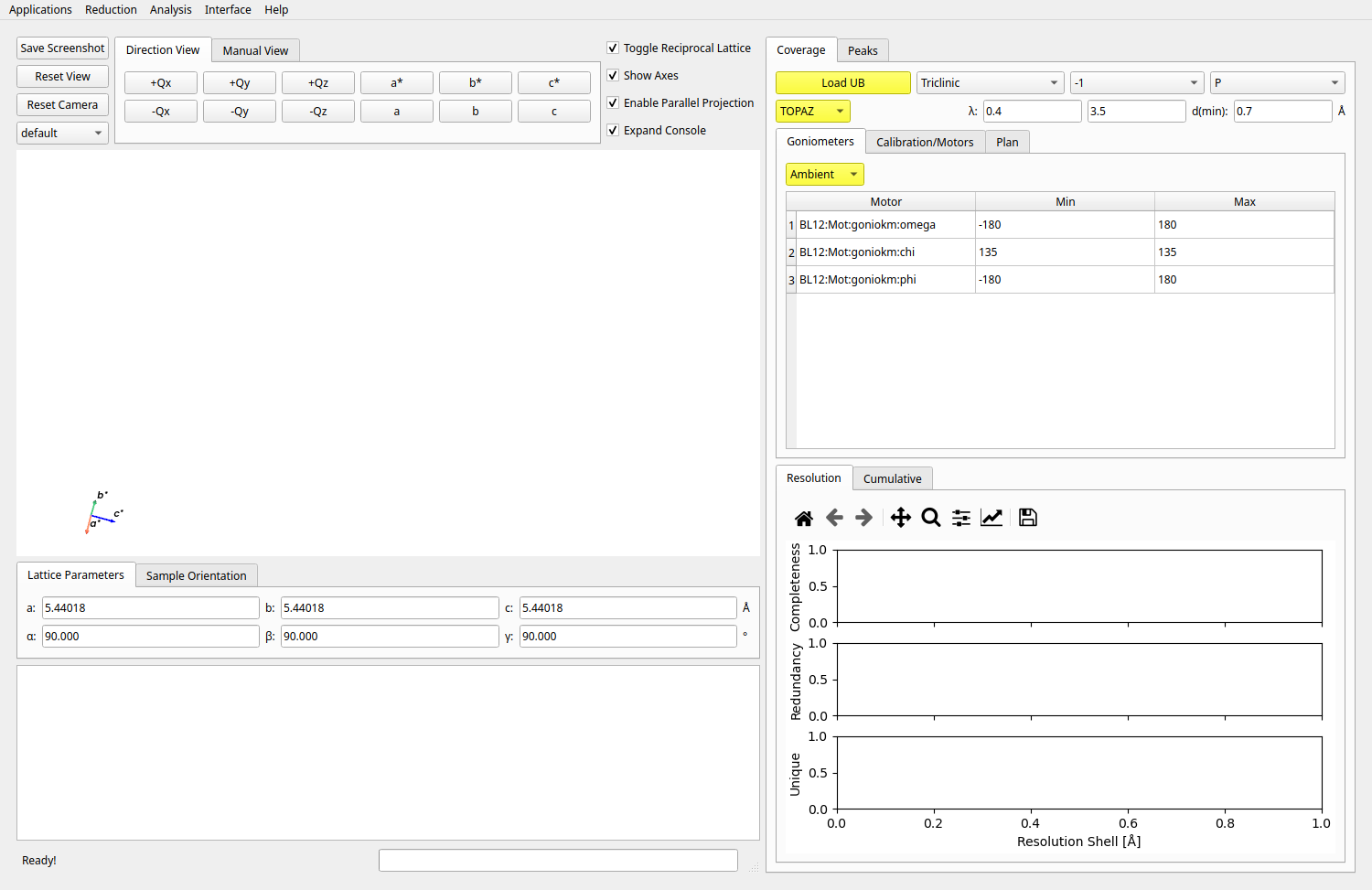

../_images/Si_plan_initialize.png

Initial experiment planner setup.#

Step 2: Update Goniometer Angles#

  • Select the goniometer row and set min/max values (e.g., -90 to 90).

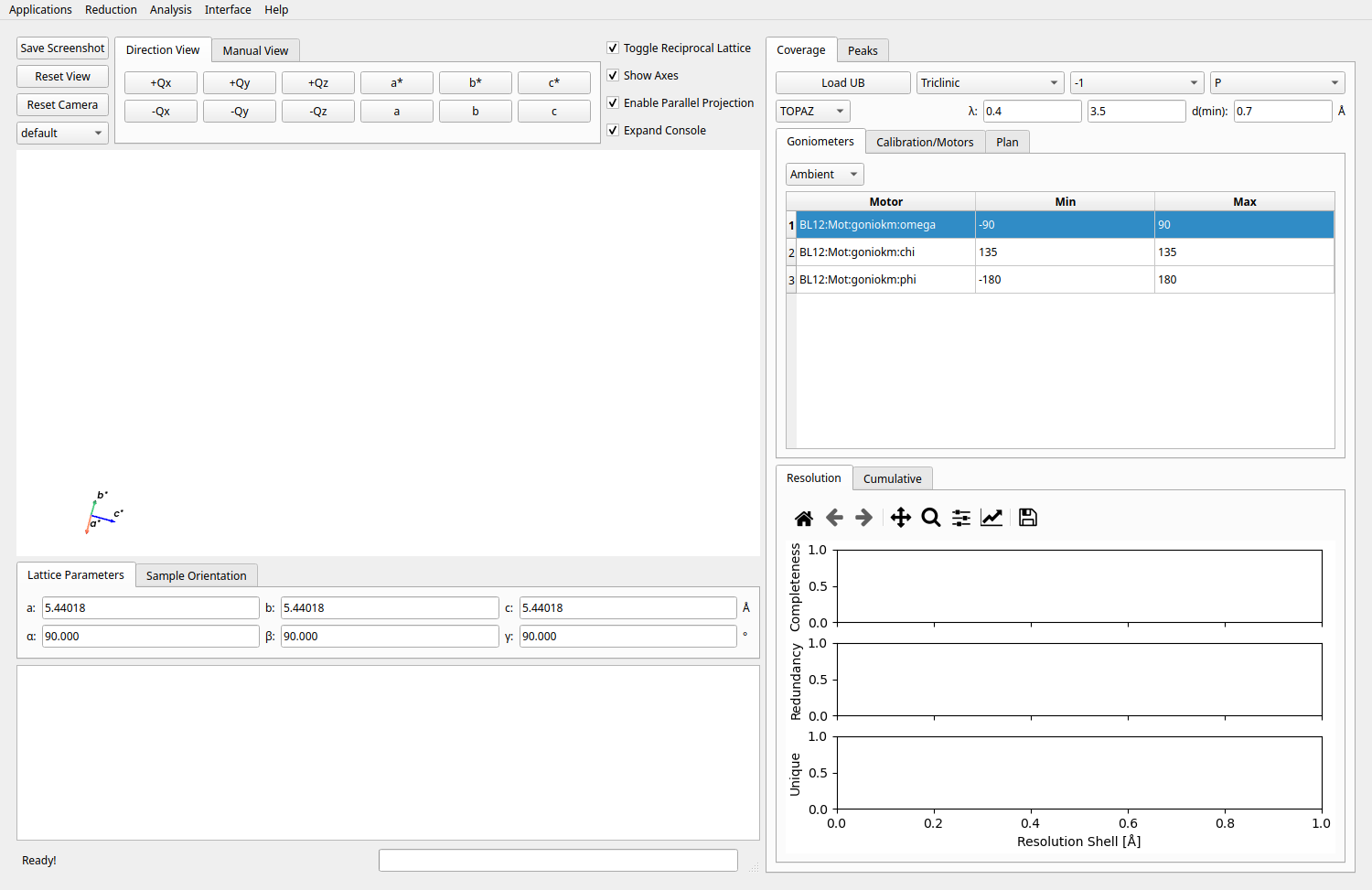

../_images/Si_plan_update.png

Update goniometer angles.#

Step 3: Calculate Peaks#

  • Enter orientation parameters and calculate desired peaks.

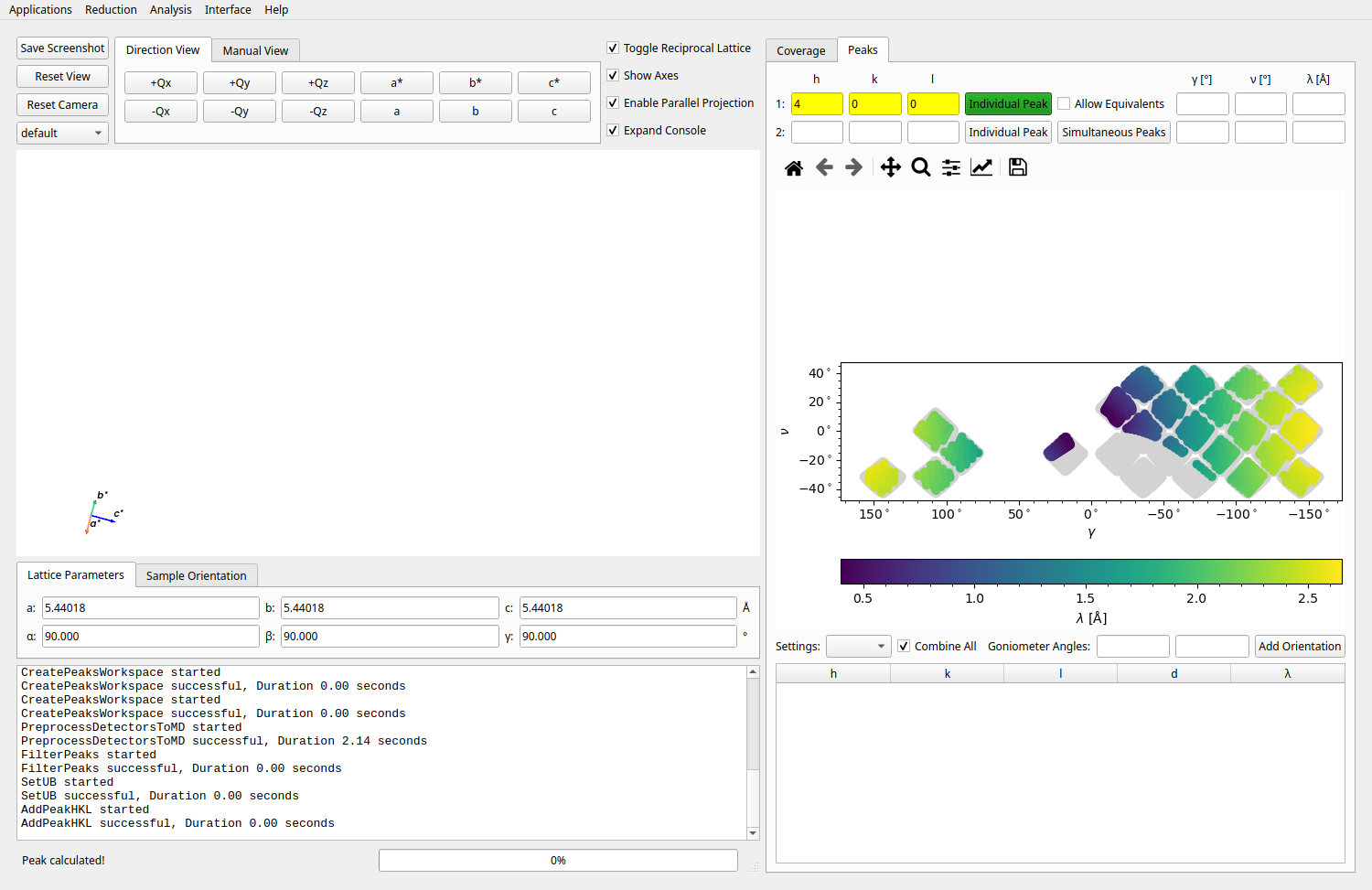

../_images/Si_plan_calculate_peak.png

Calculate peaks table.#

Step 4: Add Orientation#

  • Add the calculated orientation to the plan.

../_images/Si_plan_add_orientation.png

Add orientation dialog.#

Step 5: Optimize Coverage#

  • Set crystal system, point group, and centering, then optimize coverage.

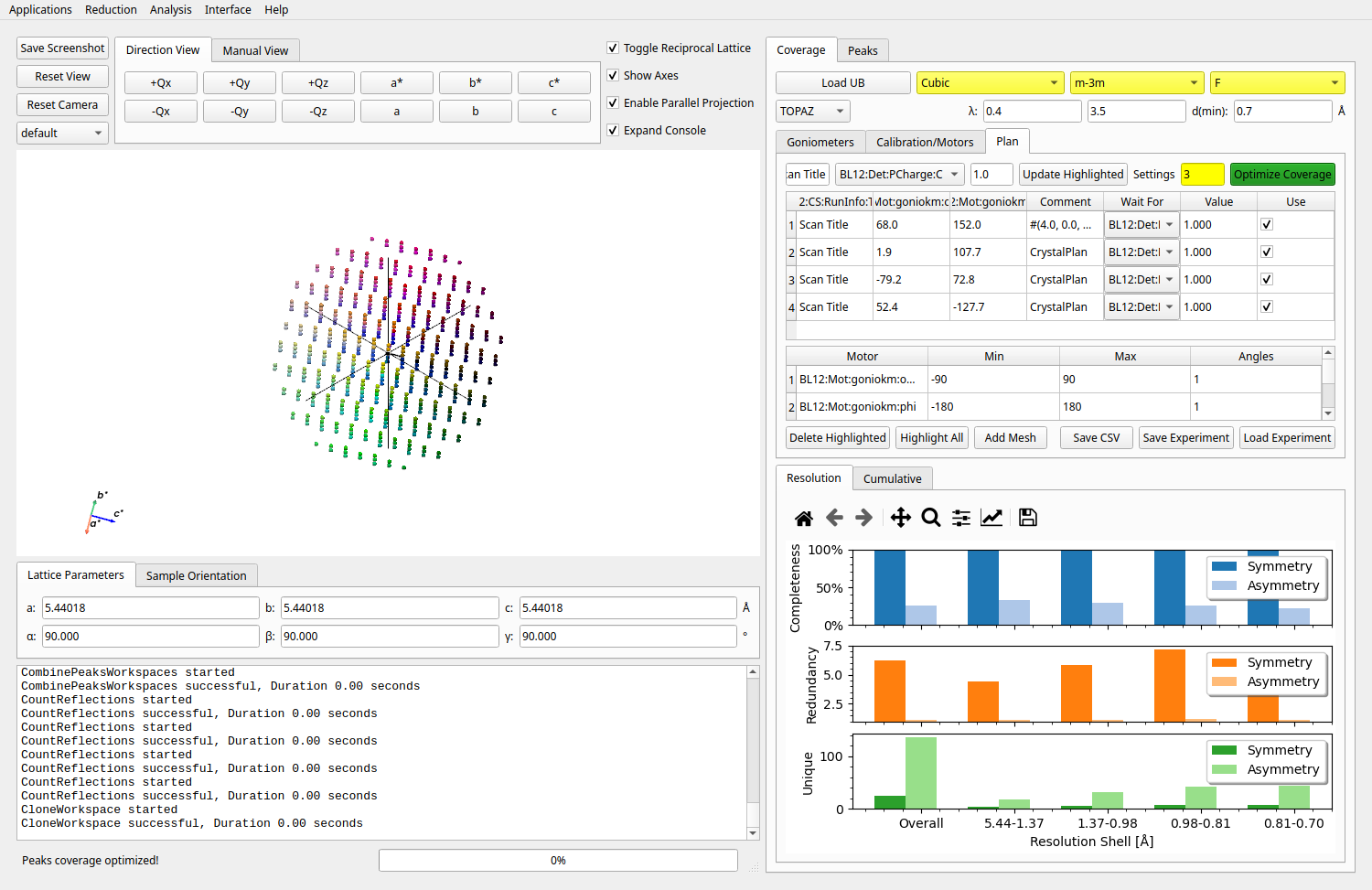

../_images/Si_plan_optimize_coverage.png

Optimize coverage results.#

Step 6: Update and Review#

  • Highlight and update orientations, review info panel for summary.

../_images/Si_plan_update_info.png

Info panel for experiment summary.#

Step 7: Save and Export#

  • Save the experiment plan as a CSV file.

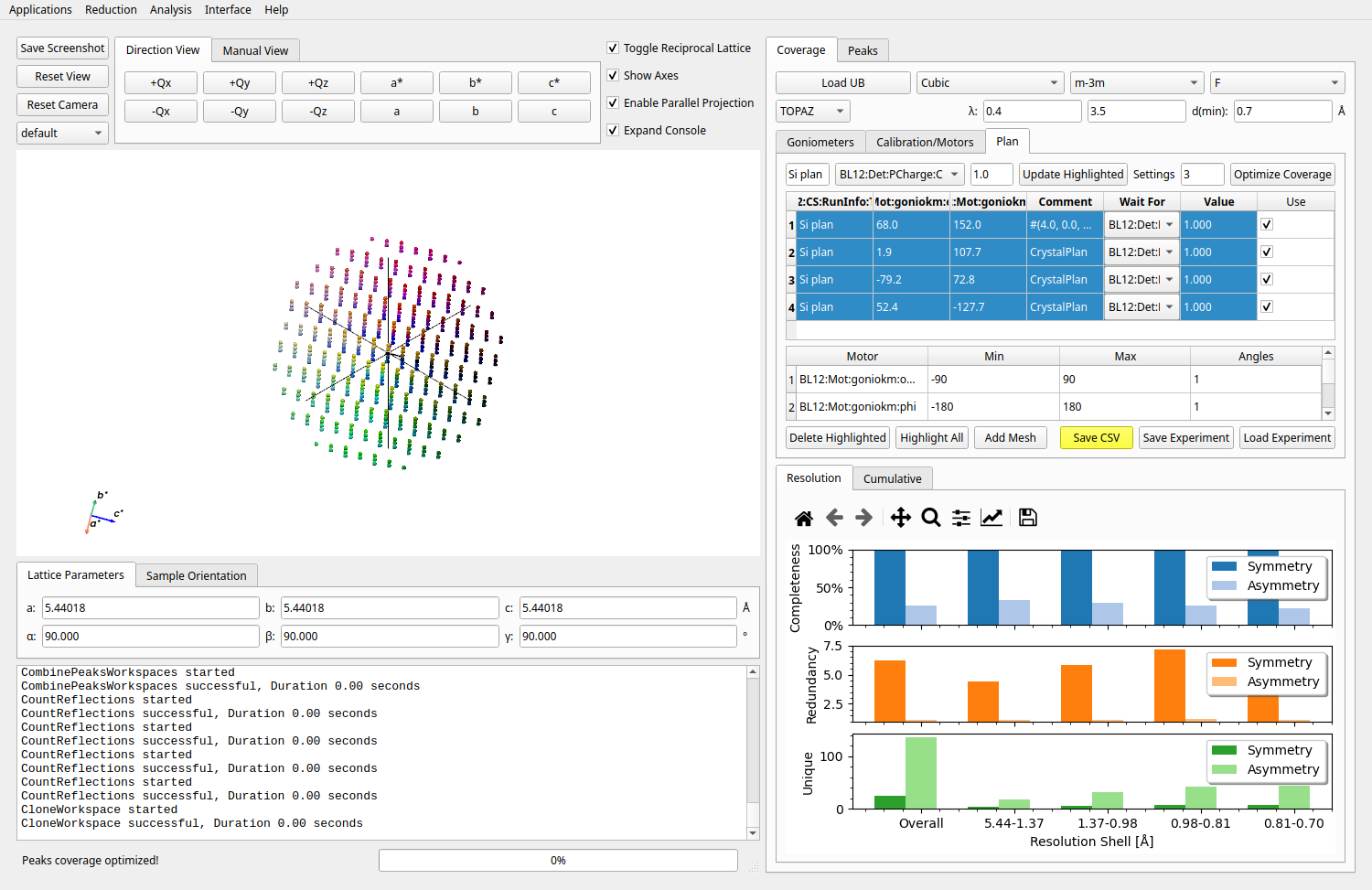

../_images/Si_plan_save_table_scan.png

Save experiment plan as CSV.#
