Volume Slicer with Silicon Data#

This tutorial demonstrates how to use the volume slicer in NeuXtalViz with normalized TOPAZ silicon volume data.

Step 1: Load the Data#

  • Open NeuXtalViz and navigate to the Volume Slicer tab.

  • Load the normalized NeXus file for the silicon dataset.

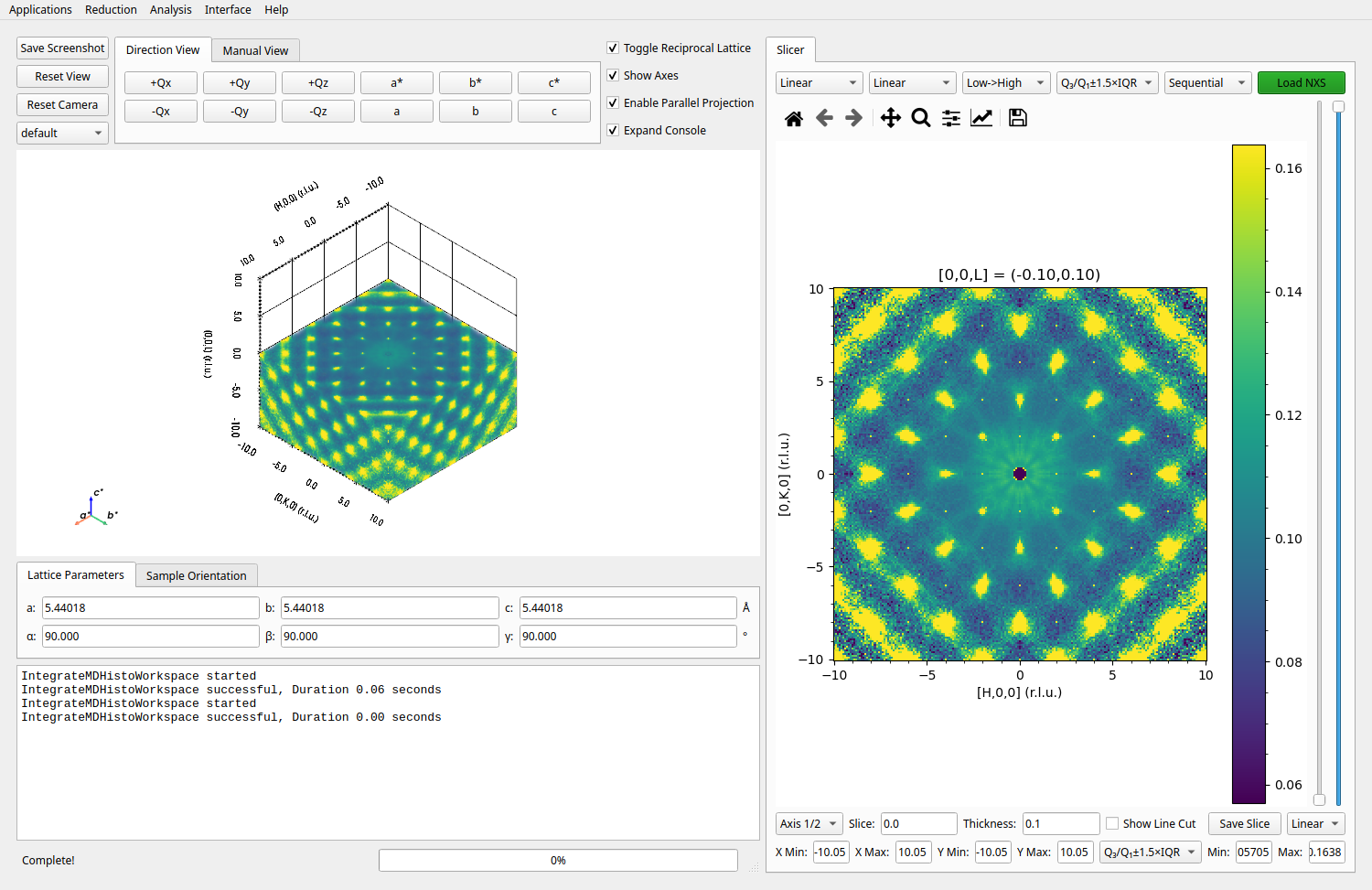

../_images/Si_volume_load.png

Load normalized silicon data.#

Step 2: Create a Slice#

  • Set the slice value and axis as needed.

  • Click to redraw and view the slice.

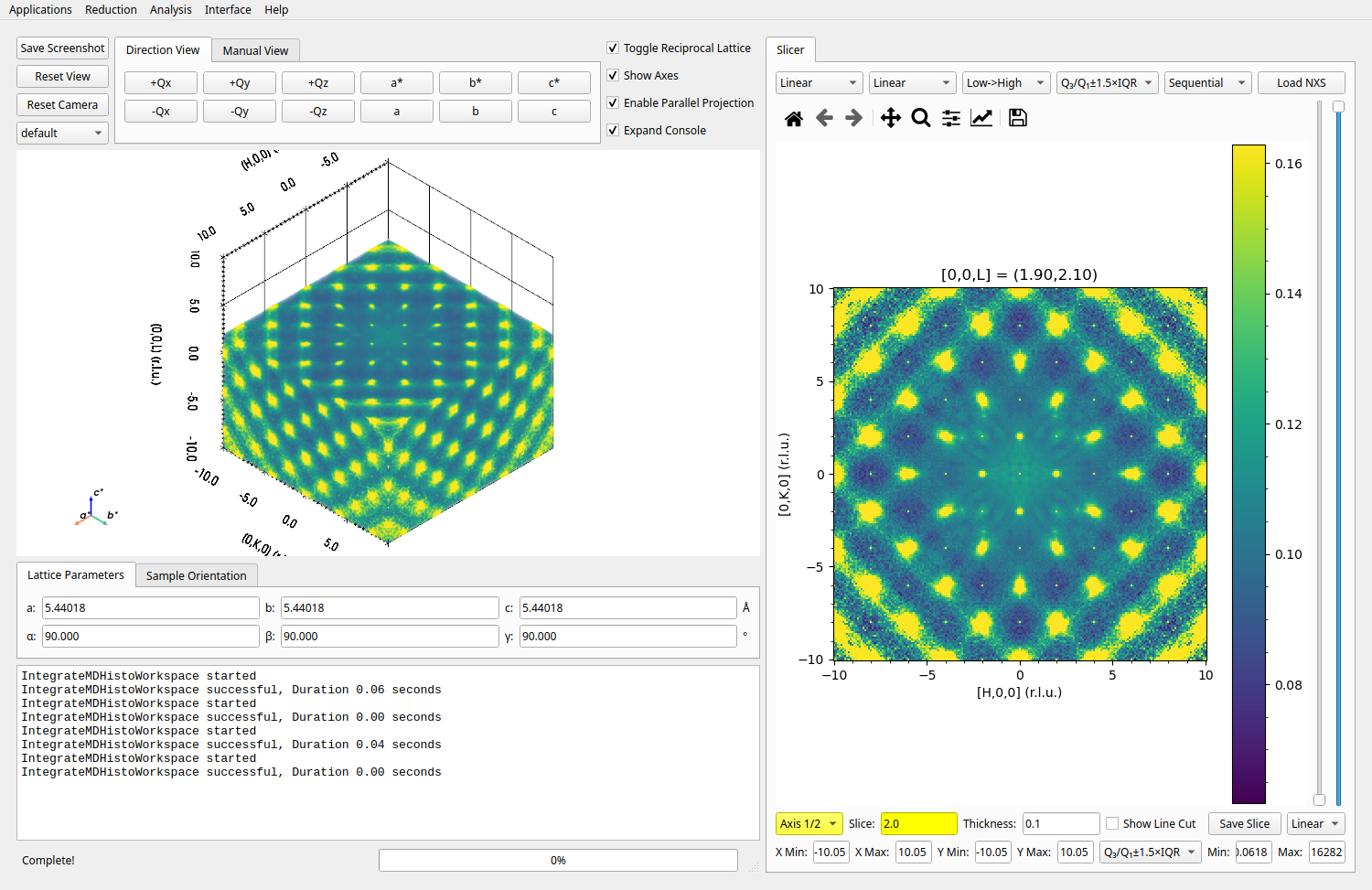

../_images/Si_volume_slice.png

Slice through the silicon volume.#

Step 3: Make a Cut#

  • Select the cut axis and set the cut value.

  • Toggle the line box and redraw to view the cut.

../_images/Si_volume_cut.png

Cut through the silicon volume.#

Step 4: Save the Results#

  • Save the current slice and cut using the save buttons.

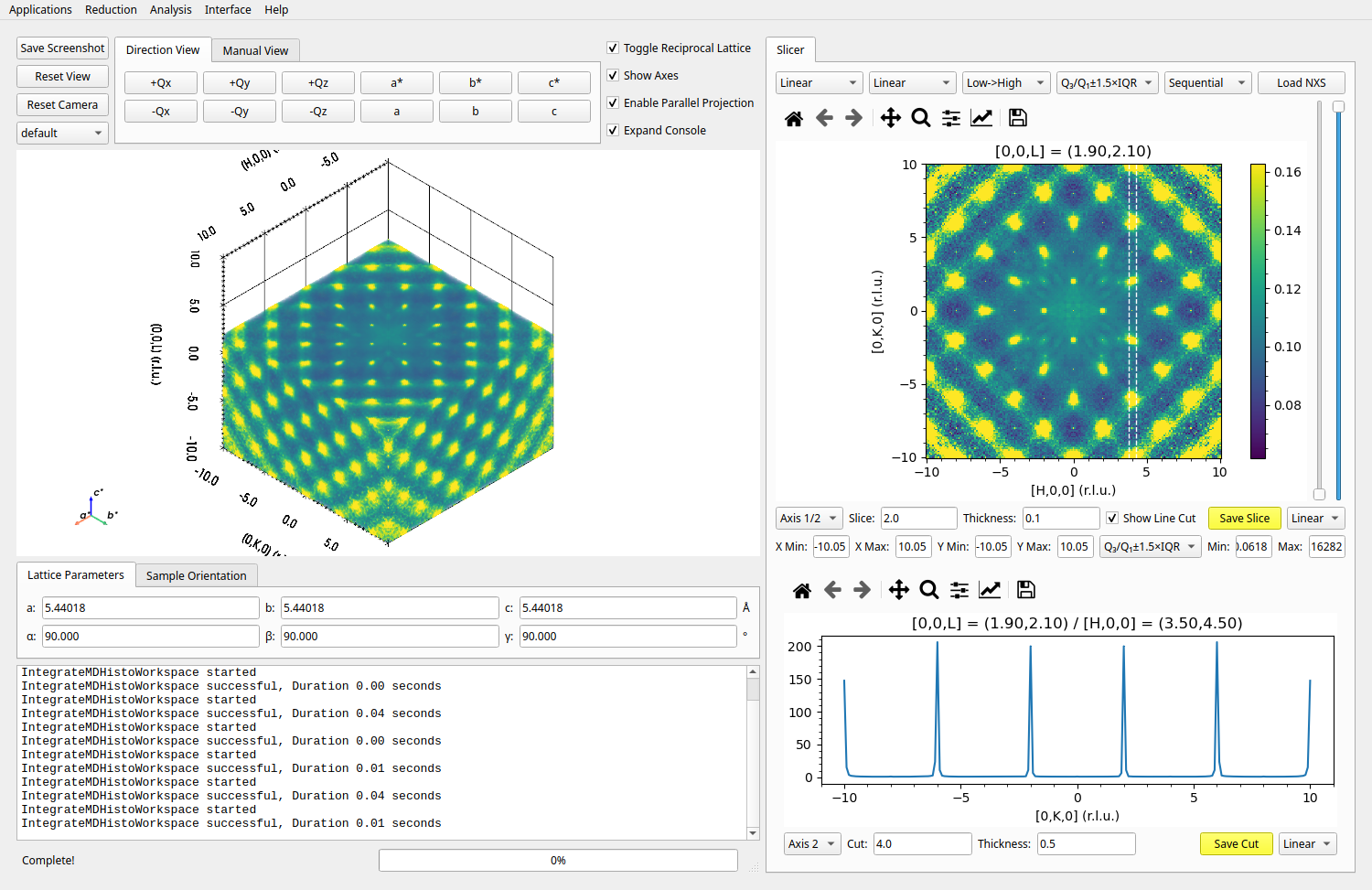

../_images/Si_volume_save.png

Save slice and cut results.#
